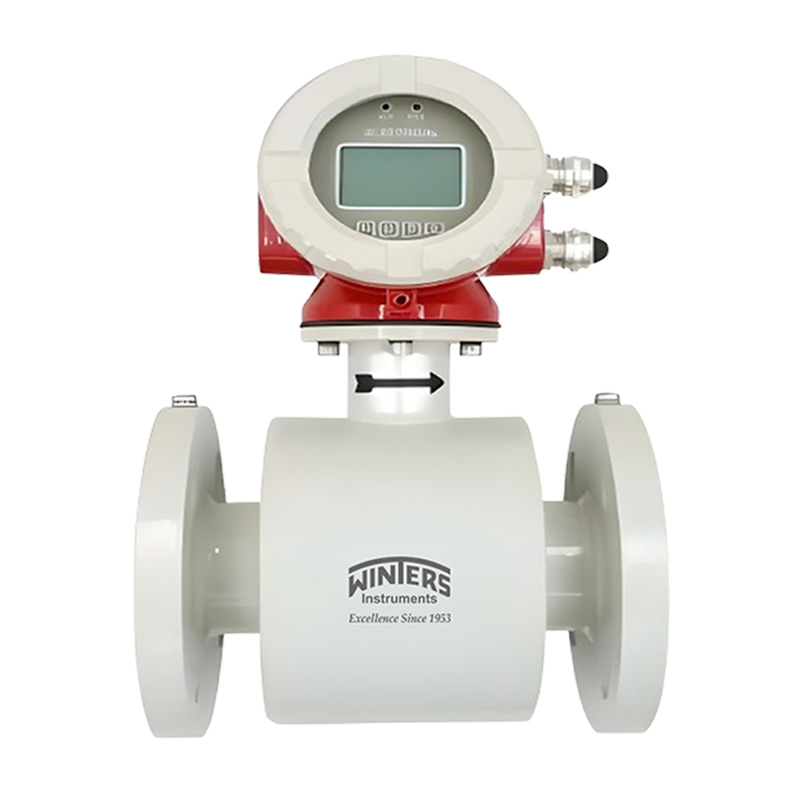

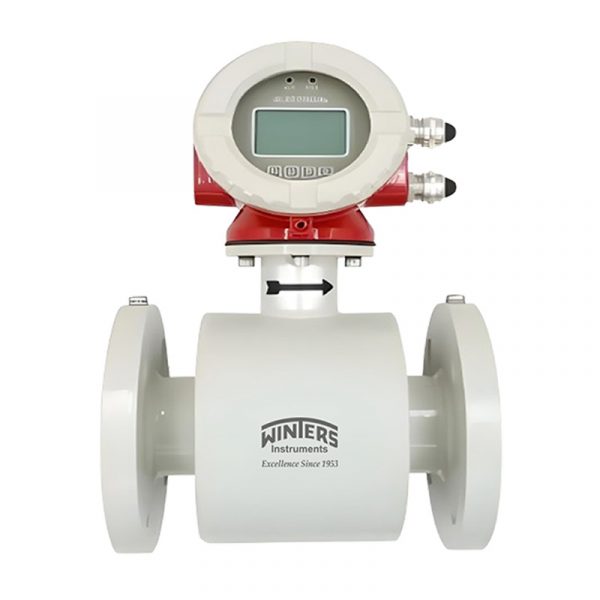

LMF11 General Application Electromagnetic Flowmeter

LMF11 General Application Electromagnetic Flowmeter

LMF11 Electromagnetic Flowmeter ensures precise flow measurement without moving parts. With advanced microprocessor technology and various materials, it guarantees reliability, low power consumption, and measurement stability across diverse applications and environments.

Winters Instruments offers general purpose pressure transmitters, aggressive media pressure transmitters, low pressure transmitters, anti-clogging submersible pressure transmitters, hydraulic pressure transmitters, LOH well service transmitters, sanitary pressure transmitters and flush mount pressure transmitters.
SKU: WI-FM-LMF11 Category:

Company:

LMF11 General Application Electromagnetic Flowmeter provides highly reliable flow measurement with no moving parts for exceptional durability and maintenance-free operation. This industry-standard meter employs 32-bit embedded microprocessor technology with low-frequency rectangular wave excitation to deliver precise flow measurements across diverse industrial applications. The modular design features built-in reference electrodes for measurement stability and three integrated flow calculators for positive, reverse, and differential measurements. With SMD and surface mount technology, the LMF11 offers exceptional circuit reliability, low power consumption, and robust EMC performance even across wide voltage ranges.


Specifications
  • Accuracy of ±0.2% or ±0.5% with repeatability of ±0.06% or ±0.16%
  • Medium temperature range: -25°C to 200°C
  • Nominal sizes from DN6 to DN2000
  • Operating pressure options from 0.6MPa to 4.0MPa
  • Four electrodes with multiple material options including SS316L, Hastelloy, Titanium, and Platinum Iridium
  • IP65/67/68 protection options for varied installation environments
  • Supports HART/Modbus (RS485) communication protocols
