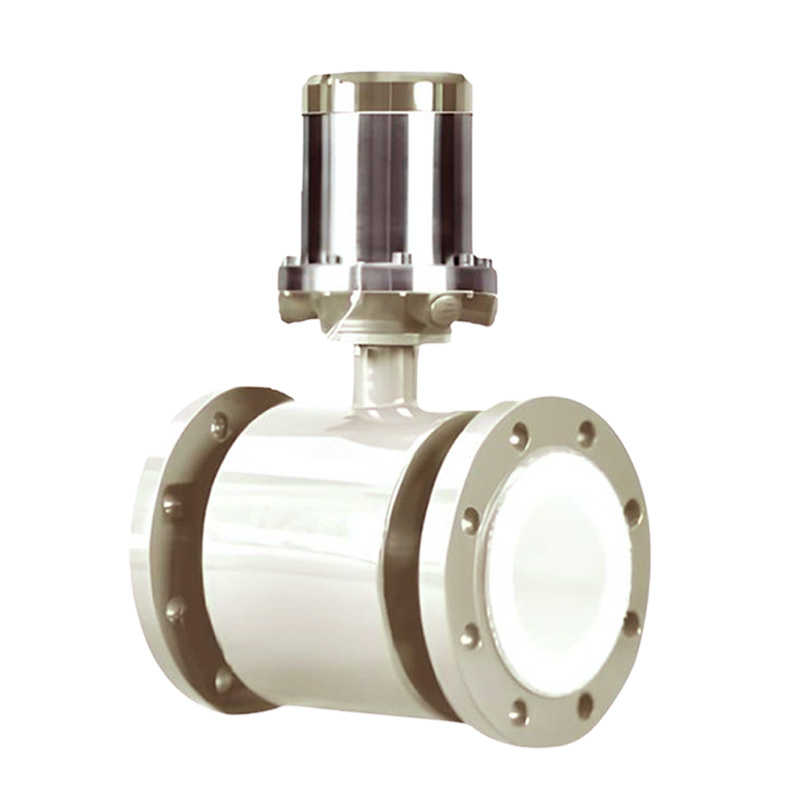

LMF11B Battery Operatred Electromagnetic Flowmeter

LMF11B Battery Operated Electromagnetic Flowmeter

LMF11B electromagnetic flowmeter ensures accurate flow measurement without external power. Featuring a durable battery with up to 10 years lifespan, it withstands harsh conditions, offers high measurement stability, and supports remote monitoring via RS485/GPRS/CDMA.

Winters Instruments offers general purpose pressure transmitters, aggressive media pressure transmitters, low pressure transmitters, anti-clogging submersible pressure transmitters, hydraulic pressure transmitters, LOH well service transmitters, sanitary pressure transmitters and flush mount pressure transmitters.
SKU: WI-FM-LMF11B Category:

Company:

LMF11B Battery Operated Electromagnetic Flowmeter delivers reliable flow measurement with exceptional power efficiency for installations where external power is unavailable or impractical. This specialized unit features built-in lithium battery power with an impressive 6-year continuous operation lifespan, with optional external battery packs extending service life beyond 10 years. The flowmeter maintains high measurement stability through its three-electrode design and 32-bit embedded microprocessor technology, significantly reducing maintenance costs and site visits. With its robust construction and absence of moving parts, the LMF11B provides consistent measurement in challenging environments while offering comprehensive data storage in EEPROM memory to protect measurement parameters and cumulative values against power loss.


Specifications
  • Accuracy of ±0.5% with repeatability of ±0.5%
  • Medium temperature range: -25°C to 200°C
  • Nominal sizes from DN10 to DN1200
  • Operating pressure options from 0.6MPa to 4.0MPa
  • Three-electrode system with multiple material options including SS316L, Hastelloy, and Titanium
  • IP67/IP68 protection class for challenging environments
  • RS485/GPRS/CDMA communication capabilities for remote monitoring
