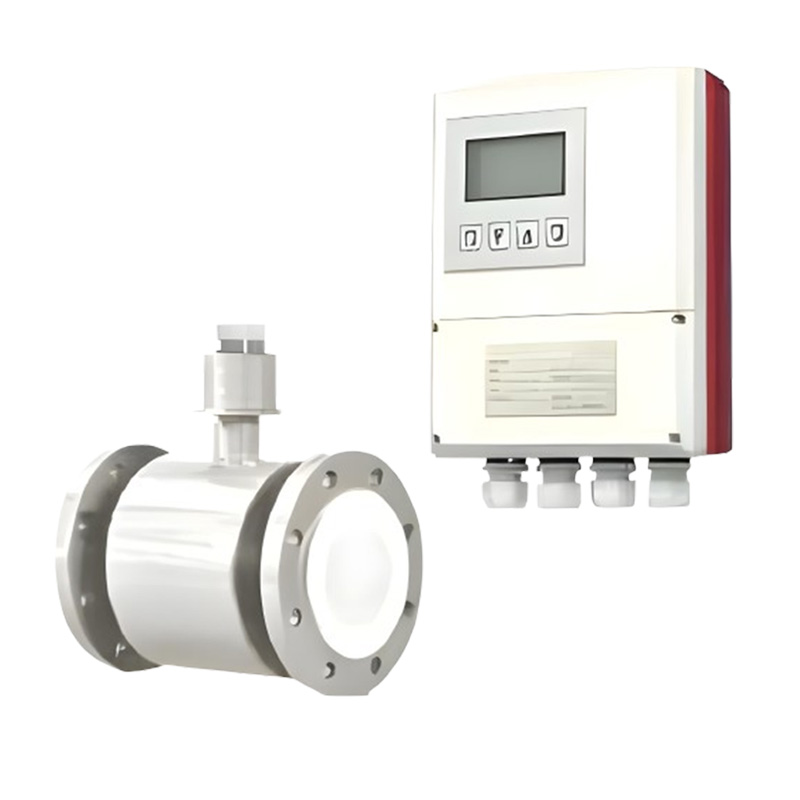

LMF12 BTU Heat Meter

LMF12 Heat Meter BTU Meter

The LMF12 Heat Meter offers unparalleled thermal energy measurement and flow monitoring, utilizing a four-electrode design and advanced microprocessor tech. With a wide temperature range, robust construction, and modular integration, it ensures high accuracy and minimal maintenance.

Winters Instruments offers general purpose pressure transmitters, aggressive media pressure transmitters, low pressure transmitters, anti-clogging submersible pressure transmitters, hydraulic pressure transmitters, LOH well service transmitters, sanitary pressure transmitters and flush mount pressure transmitters.
SKU: WI-FM-LMF12 Category:

Company:

LMF12 Heat Meter Electromagnetic Flowmeter provides precise thermal energy measurement capabilities integrated with flow monitoring functionality. Specifically designed for HVAC applications, this specialized unit accurately calculates heat transfer rates while maintaining reliable flow measurement. The meter employs advanced 32-bit microprocessor technology with four electrodes to ensure exceptional stability and measurement precision across varying conditions. The LMF12 features built-in calculators for positive, negative, and differential flow measurements, allowing for comprehensive thermal system monitoring. Its modular design facilitates integration into building management systems, while the robust construction with no moving parts ensures long-term reliability and minimal maintenance requirements.


Specifications
  • Accuracy of ±0.5% with reliable repeatability
  • Medium temperature range: -25°C to 200°C
  • Nominal sizes from DN6 to DN2000
  • Operating pressure options from 0.6MPa to 4.0MPa
  • Four-electrode system with multiple material options including SS316L and Hastelloy
  • IP65 standard protection with IP67/IP68 options available
  • Supports 4-20mA/Pulse/Frequency outputs and Modbus (RS485) communication
