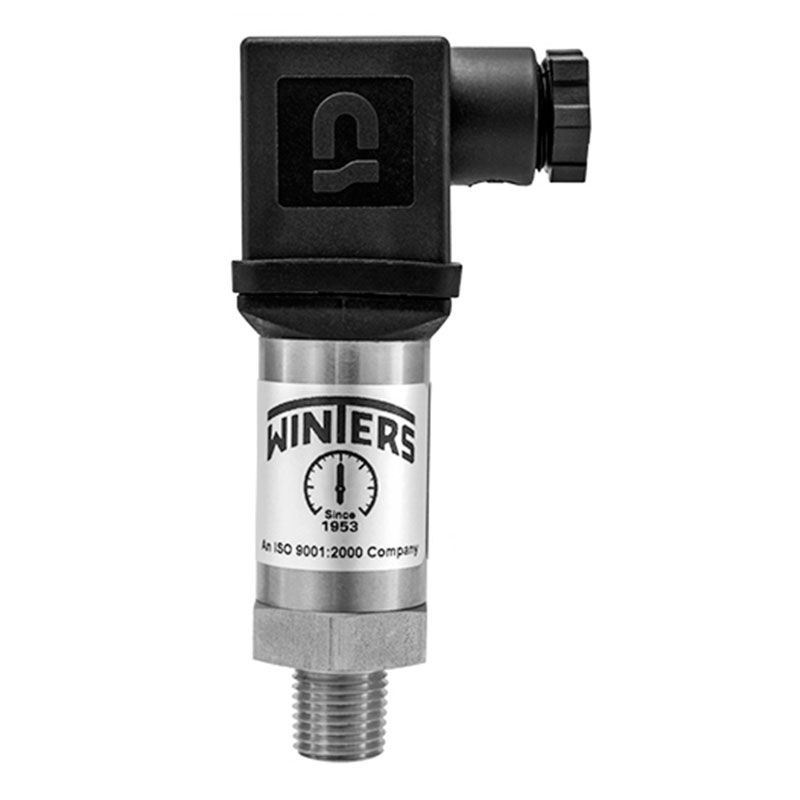

Winters Instruments LE3 General Purpose Pressure Transmitter is designed for general industrial and OEM applications where versatility, reliability, and cost-effective performance are essential. Built with a 304 stainless steel housing and ceramic pressure sensor, it provides accurate pressure measurement across ranges from in/Hg to 5,000 psi.
Supporting multiple electrical output options and mechanical connections, the LE3 transmitter easily integrates into a wide variety of industrial control systems. Its compact design, excellent long-term stability, and NEMA 4X/IP65 and IP67 protection make it suitable for both indoor and outdoor installations.
Key Features
- General purpose pressure transmitter
- Pressure ranges from in/Hg to 5,000 psi
- Compact 304 stainless steel construction
- Ceramic sensing element
- Standard 4–20 mA output
- Optional voltage and ratiometric outputs
- ±0.5% full-scale accuracy
- NEMA 4X / IP65 and IP67 enclosure ratings
- Suitable for outdoor installation
- CE, CSA, and RoHS compliant
- Customizable configurations available
- Backed by a 1-year manufacturer’s warranty
Typical Applications
- Industrial process control
- Factory automation
- OEM equipment
- Hydraulic systems
- Pneumatic systems
- Pump and compressor monitoring
- Refrigeration systems
- HVAC applications
Technical Specifications
| Specification | Details |
|---|---|
| Pressure Range | in/Hg to 5,000 psi |
| Accuracy | ±0.5% FSO |
| Output Signal | 4–20 mA (Standard), Optional Voltage & Ratiometric Outputs |
| Sensor Type | Ceramic |
| Housing Material | 304 Stainless Steel |
| Wetted Parts | Ceramic Diaphragm with FKM (Viton®) Seal |
| Enclosure Rating | NEMA 4X / IP65 and IP67 |
| Medium Temperature | -13°F to 257°F (-25°C to 125°C) |
| Compliance | CE, CSA, RoHS |
