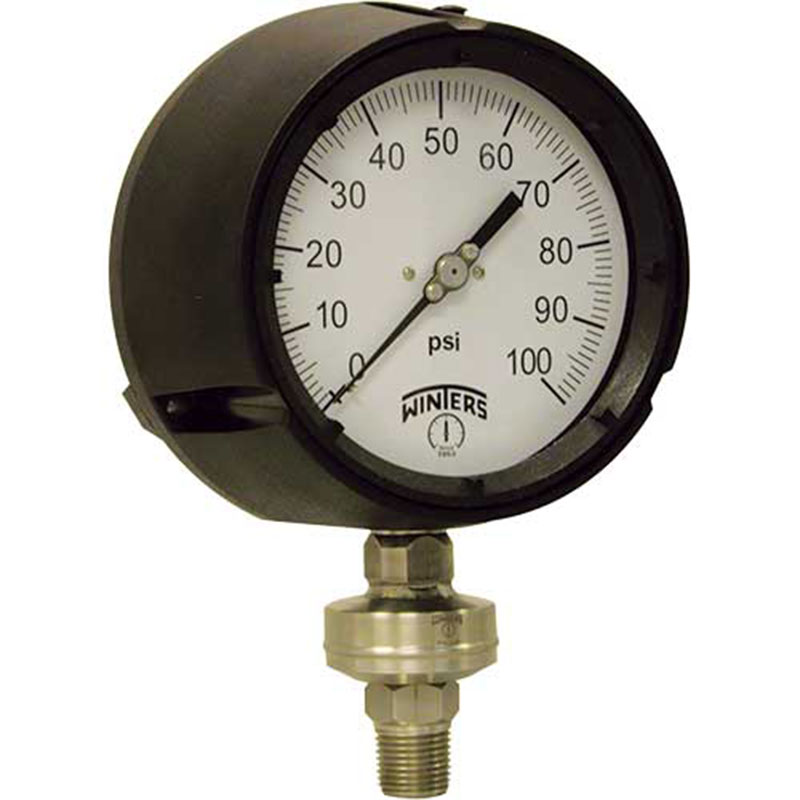

Winters Instruments PTR Tamper Resistant Process Gauge is an integrated pressure gauge and diaphragm seal assembly engineered for applications where tamper resistance, process safety, and measurement reliability are critical. The gauge is permanently welded to a 316L stainless steel diaphragm seal, creating a sealed system that helps prevent leaks and eliminates common field assembly errors.
Featuring a solid-front safety case, pressure relief back, and silicone-filled sealed system, the PTR gauge is designed to deliver dependable performance in demanding industrial environments. Its robust stainless steel construction makes it suitable for corrosive media and process applications across oil & gas, petrochemical, chemical, and general process industries.
Key Features
- Tamper-resistant integrated gauge and diaphragm seal
- Permanently welded 316L stainless steel diaphragm
- Solid-front safety case with pressure relief back
- Permanently enclosed silicone-filled system
- Field-fillable gauge
- Optional orifice restrictor for severe pulsation
- Optional 6 o’clock pin stop
- ±1% ANSI/ASME Grade A accuracy
- IP65 enclosure rating
- ASME B40.100 compliant
- CRN registered
- 5-year gauge warranty and 1-year diaphragm seal warranty
Typical Applications
- Oil & gas facilities
- Petrochemical plants
- Chemical processing
- Industrial process systems
- Corrosive process media
- Applications requiring tamper-resistant pressure measurement
- Systems exposed to vibration and pulsation
Technical Specifications
| Specification | Details |
|---|---|
| Dial Size | 4.5 in (115 mm) |
| Accuracy | ±1% ANSI/ASME Grade A |
| Gauge Construction | Solid-front phenolic safety case |
| Diaphragm Material | 316L Stainless Steel |
| Process Connection | 1/2″ NPT Male |
| System Fill | Silicone Oil |
| Enclosure Rating | IP65 |
| Working Pressure | Maximum 75% of Full Scale |
| Compliance | ASME B40.100, CRN Registered |
