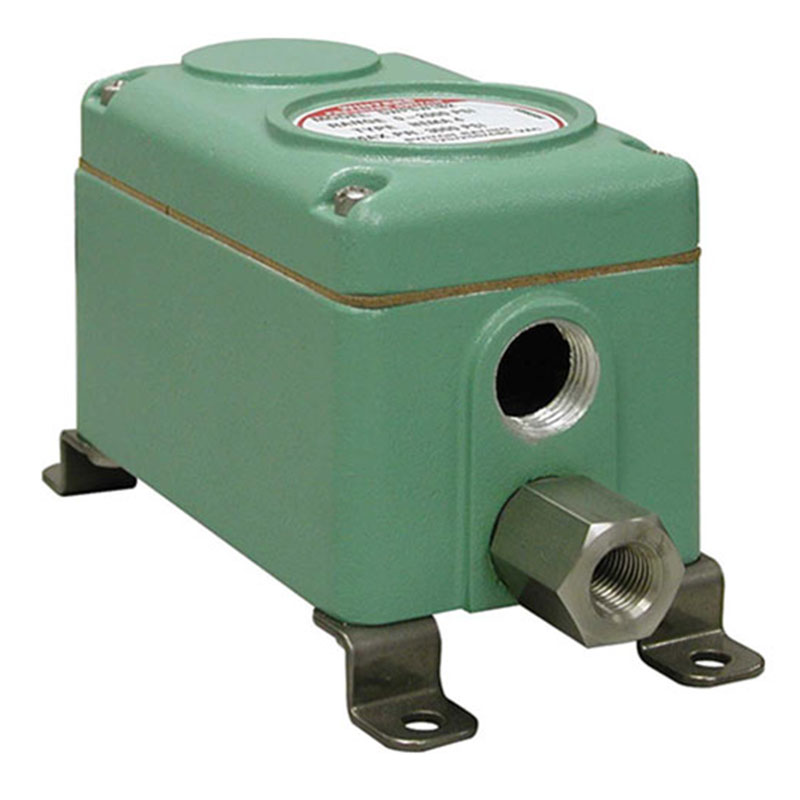

Winters Instruments 5WPS Differential Pressure Switch is engineered for dependable differential pressure monitoring in demanding industrial environments. Utilizing a bellows-actuated frictionless switching mechanism, it delivers accurate and repeatable switching across pressure ranges from 15 to 5,000 psi.
Designed with a durable cast aluminum housing and stainless steel wetted parts, the 5WPS offers field-adjustable set points, one or two SPDT switching contacts, and an optional adjustable deadband. Its robust NEMA 4X, 12 & 13 enclosure makes it well suited for harsh operating conditions in industrial facilities and remote installations.
Key Features
- Bellows-actuated frictionless switching mechanism
- Differential pressure range from 15 to 5,000 psi
- One or two SPDT switching contacts
- Field-adjustable set point
- Fixed deadband with adjustable option available
- Cast aluminum housing
- Stainless steel wetted parts
- ±0.5% of range sensitivity
- NEMA 4X, 12 & 13 enclosure
- Optional hermetically sealed switch
- UL recognized
- Backed by a 1-year manufacturer’s warranty
Typical Applications
- Pumping stations
- High and low level control
- Remote installations
- Industrial process systems
- Process automation
- Pressure monitoring and control
Technical Specifications
| Specification | Details |
|---|---|
| Pressure Range | 15 to 5,000 psi |
| Sensitivity | ±0.5% of Range (Single SPDT) |
| Pressure Connection | 1/4″ NPT Female |
| Electrical Contact | One or Two SPDT |
| Housing Material | Cast Aluminum |
| Wetted Parts | Stainless Steel |
| Enclosure Rating | NEMA 4X, 12 & 13 |
| Operating Temperature | -40°F to 180°F (-40°C to 82°C) |
| Compliance | UL Recognized (Switch Only) |
