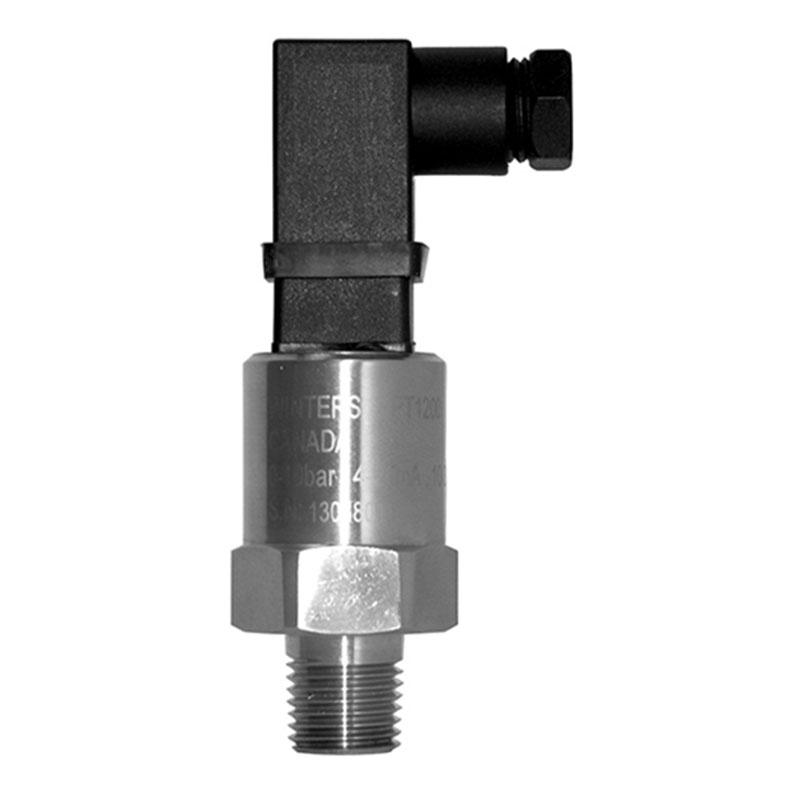

Winters Instruments LE1 OEM Pressure Transmitter is engineered for OEM equipment manufacturers and industrial automation systems requiring dependable pressure measurement in a compact design. Constructed with a 304 stainless steel housing and ceramic pressure sensor, it provides reliable performance across pressure ranges from vacuum to 8,700 psi (600 bar).
Designed for versatility, the LE1 transmitter is available with multiple mechanical and electrical connection options, including 4–20 mA and optional voltage outputs, making it suitable for integration into a wide variety of control systems. Optional zero and span adjustment further enhances installation flexibility.
Key Features
- Compact OEM pressure transmitter
- Pressure ranges from vacuum to 8,700 psi (600 bar)
- 304 stainless steel housing
- Ceramic sensing element
- Standard 4–20 mA output
- Optional voltage output
- Optional zero and span adjustment
- ±0.5% full-scale accuracy (±1% for low-pressure ranges)
- IP65 and IP67 enclosure ratings
- CE approved
- Backed by a 1-year manufacturer’s warranty
Typical Applications
- OEM equipment
- Industrial process control
- Factory automation
- Hydraulic systems
- Pneumatic systems
- Pump and compressor monitoring
- Refrigeration systems
- HVAC applications
Technical Specifications
| Specification | Details |
|---|---|
| Pressure Range | Vacuum to 8,700 psi (600 bar) |
| Accuracy | ±0.5% FSO (±1% for ≤45 psi) |
| Output Signal | 4–20 mA (Standard), Optional Voltage Output |
| Sensor Type | Ceramic |
| Housing Material | 304 Stainless Steel |
| Wetted Parts | Ceramic Diaphragm with NBR Seal |
| Enclosure Rating | IP65 / IP67 |
| Operating Temperature | -40°F to 212°F (-40°C to 100°C) |
| Compliance | CE Approved |
